作者:瑞達豐 發布時間:2018-10-30 23:33 閱讀次數:154

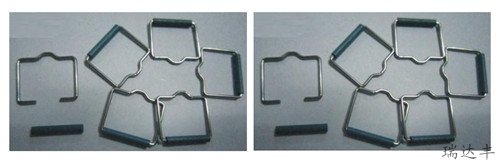

sfp拉環又稱之為SFP handle,他是sfp外殼上的一個組合部件,使用在sfp光模塊上,用啦進行插拔解鎖使用,其中需要注意的一點是,拉環的顏色不能隨便配置,需要根據sfp光模塊的波長進行配置。以下為配置表格。
sfp雙纖拉環配色對應表 | |
波段 | 配色 |
ZX1550nm | 綠色 |
SX850nm | 黑色 |
LX,LH1310nm | 藍色 |
百兆多模1310nm | 藍色 |
百兆單模1310nm | 藍色 |
sfp單纖雙向(BIDI)拉環配色對應表 | |
波段 | 配色 |
1490nm | 紫色 |
1550nm | 綠色 |
1310nm | 藍色 |

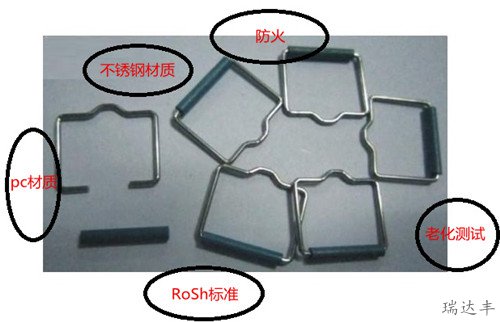

sfp拉環基礎信息
1.產品防火,耐高溫100度3H;
2.鐵合金為不銹鋼材質;
3.塑膠味PC材質;
4.產品質量符合RoHS標準;
5.每款產品都經過表面表面良好的耐磨、耐酸堿腐蝕(48小時鹽霧測試)、耐高低溫,等老化測試。
The product USES light module, for insertion unlock with,
1. Product fireproof, high temperature resistance 100 degrees 3H;
2. Ferroalloy is made of stainless steel;
3. Plastic taste PC material;
4. Product quality is in line with RoHS standards;
5. Good surface wear resistance, acid and alkali corrosion resistance (48 hours salt spray test), high temperature resistance.
